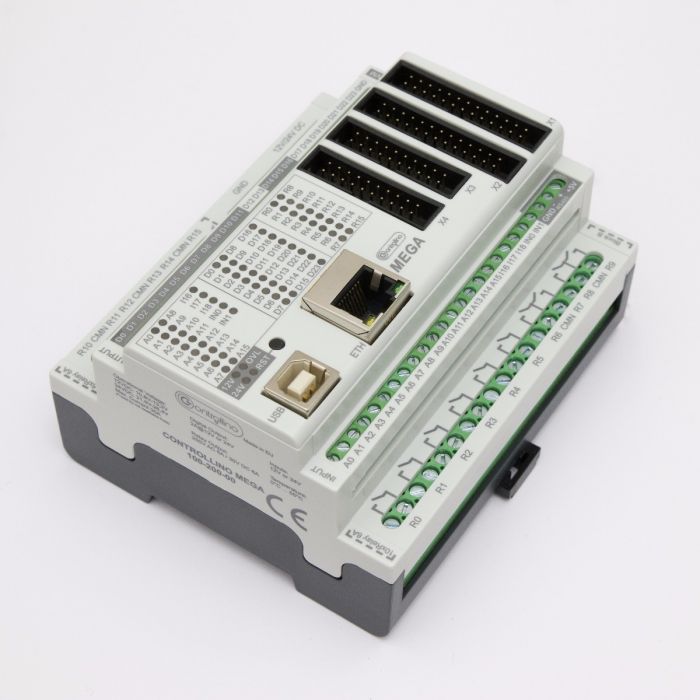

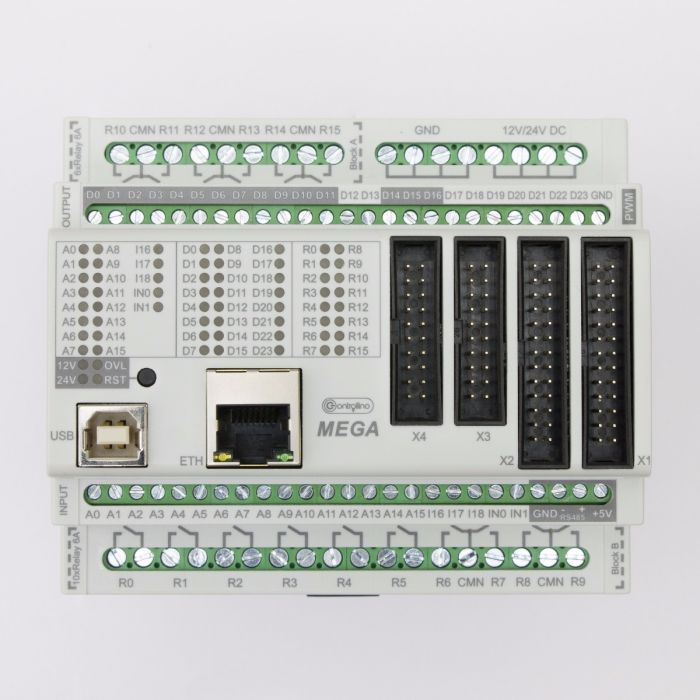

CONTROLLINO MEGA
Viene con protectores IDC
CONTROLLINO MEGA
Viene con protectores IDC
Características
| CPU Type | ATmega2560 |
| CPU Clock Speed | 16 MHz |
| Current Max | 30 Ampere |
| RTC support | YES |
| LAN Interface | 1x |
| SERIAL Interface | 2x |
| RS485 Interface | 1x |
| SPI Interface | 1x |
| I2C Interface | 1x |
| Digital Inputs | 5x (I16, I17, I18, IN0, IN1) |
| Analog Inputs | – |
| Digital/Analog Inputs | 16x (A0-A15) |
| Digital Outputs | 12x Half-Bridge – 2A @12V or 24V (D0-D15) + 12x High Side Switch – 2A @12V or 24V (D12-D23) |
| Relay Outputs | 16x – 230V / 6A |
| Analog Outputs | 15x PWM (D0-D11, D14-D16) |
Información Adicional
| Peso | 440 g |
| Dimensiones | 135 × 125 × 85 mm |
